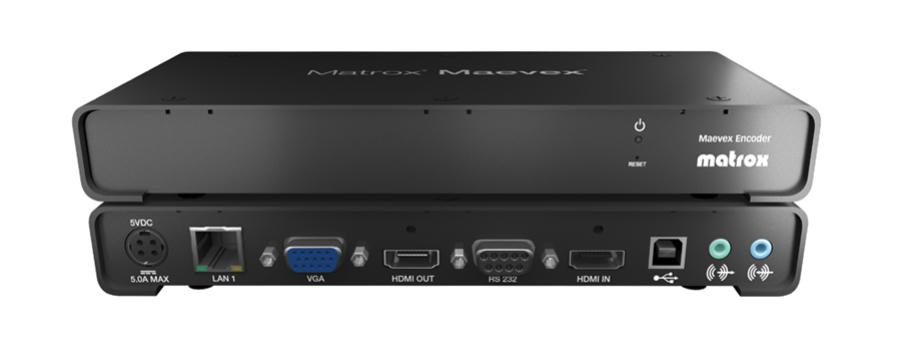

Matrox Maevex MVX-E5150F over-IP Encoder

Extend/record up to Full HD 1080p60 and 1920x1200 video and audio
H.264 compression for high-quality, low-bandwidth AV-over-IP
Support for wide-screen & standard aspect ratios and many resolutions
Scale streams before distribution for lower bandwidth consumption
Schedule the start time and date of recording sessions
HDMI or analog audio support
Open encoding allows for third-party software decode (e.g. VLC)
Recording:
Record up to 1080p60/1920x1200 to NAS or shared network drive
Control frequency and duration of recording
Recorded user-defined file name includes timestamp for easy file management
Network Management:
Operates on standard 100/1000Mb Ethernet networks
Auto-detect and discover Maevex units on subnet (DHCP server required)
Full/half-duplex mode and static IP address support
CBR, VBR support
Network bit-rate control (100 Kbps - 25 Mbps)
Failsafe:
Play back pre-recorded content at the decoder in case of a network disruption or if encoder stops streaming (e.g. loss of power)
Programmable time delay before failsafe activates
Maevex API:
Integrate Maevex features in existing or new control software
Based on easy-to-use .NET programming language
Provided to select developers (no cost/license-free)
PowerStream Control Software:
Remotely manage Maevex network from different locations
Conveniently access IP address, bit rate, and other vitals
Fine-tune encode/decode parameters and adjust bit rates
Scale & crop content to fit different outputs
Other Benefits:
Daisy-chain decoders & extend network via integrated network switch
Failure resilience-power, network, and device auto-recovery features
Full duplex RS-232 control (pt. to pt.)
Reliable, solid-state, energy-efficient design
Local real-time pass-through and confidence preview on encoder
PowerStream-controlled user access from secured PC
Detailed LED indicators for easy and effective troubleshooting
